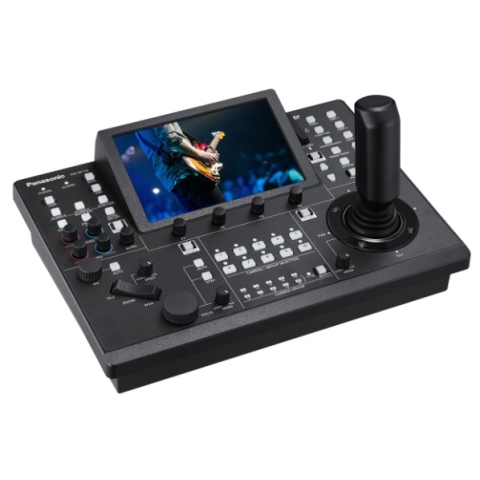

The RP-150 remote camera controller provides handheld-style operation for Panasonic PTZ cameras, combining a responsive one-hand joystick with a large touch-panel LCD for monitoring and menu control. It is designed for rental use where reliable, intuitive remote camera management is required.

Key Features

• One-hand operation joystick: Switchable control between PTZ movement and focus, enabling quick adjustments during live production.
• Large touch-panel LCD: Onboard monitoring and menu access for camera configuration without a separate monitor.
• Flexible power options: Supports 12 V DC input (10.8 V to 13.2 V) or PoE+ via IEEE802.3at, with camera input voltage range DC 42 V to 57 V.
• Low current draw: Typical consumption is 1.0 A from connector input, and 0.6 A when powered via PoE+.
• Operational environment: Rated for ambient temperatures from 0 °C to 40 °C (32 °F to 104 °F), suitable for most indoor locations.

Use Cases

• Live production and broadcast: Fast, hands-on PTZ direction and focus control for events, houses of worship, and studios.
• Corporate and education: Single-operator control during presentations, lectures, and multi-camera setups.
• Location shoots: Portable control with PoE+ compatibility for simplified cabling and power management.

Specifications

• Power Requirements: 12 V DC (10.8 V to 13.2 V) or PoE+ (IEEE802.3at) with camera input DC 42 V to 57 V.
• Current Consumption: 1.0 A (connector input), 0.6 A (PoE+).
• Ambient Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F).

Included with your rental

Rentals typically include the RP-150 controller unit and the standard power and connection accessories required for operation.

Note: This unit is intended for use with compatible Panasonic PTZ cameras. Verify camera compatibility and any site-specific power or network requirements before deployment.
